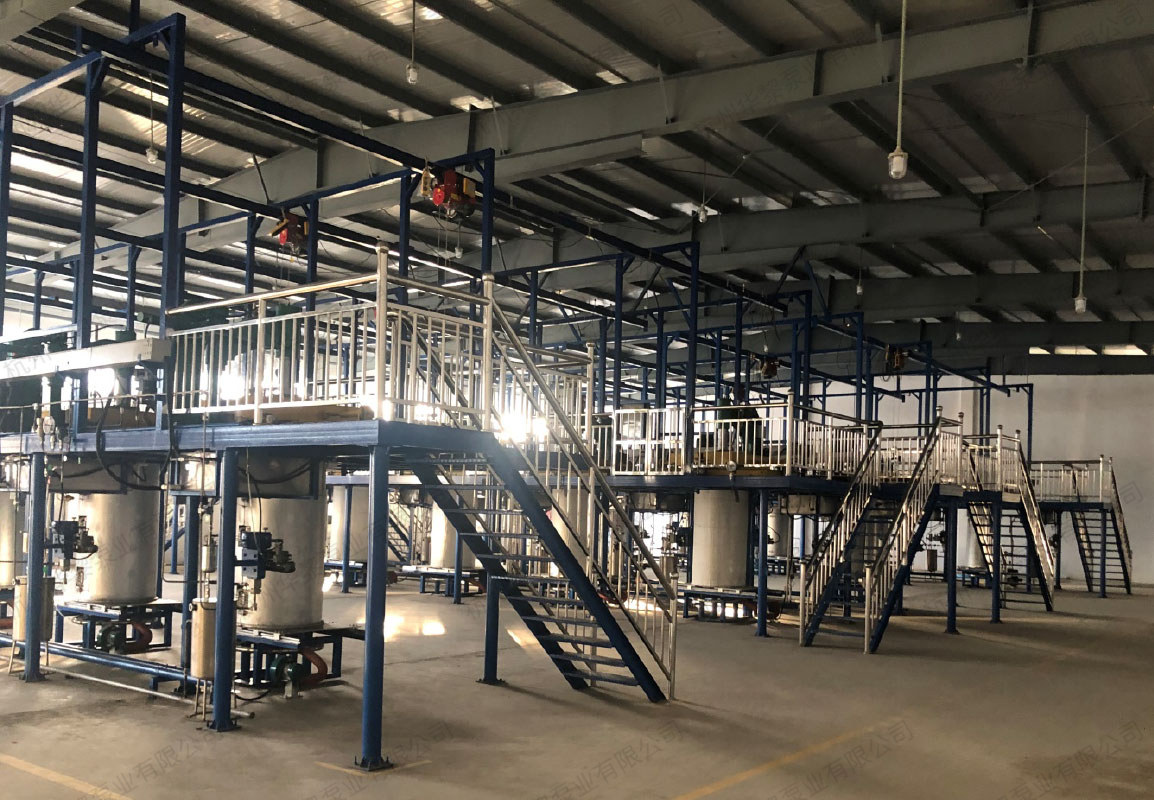

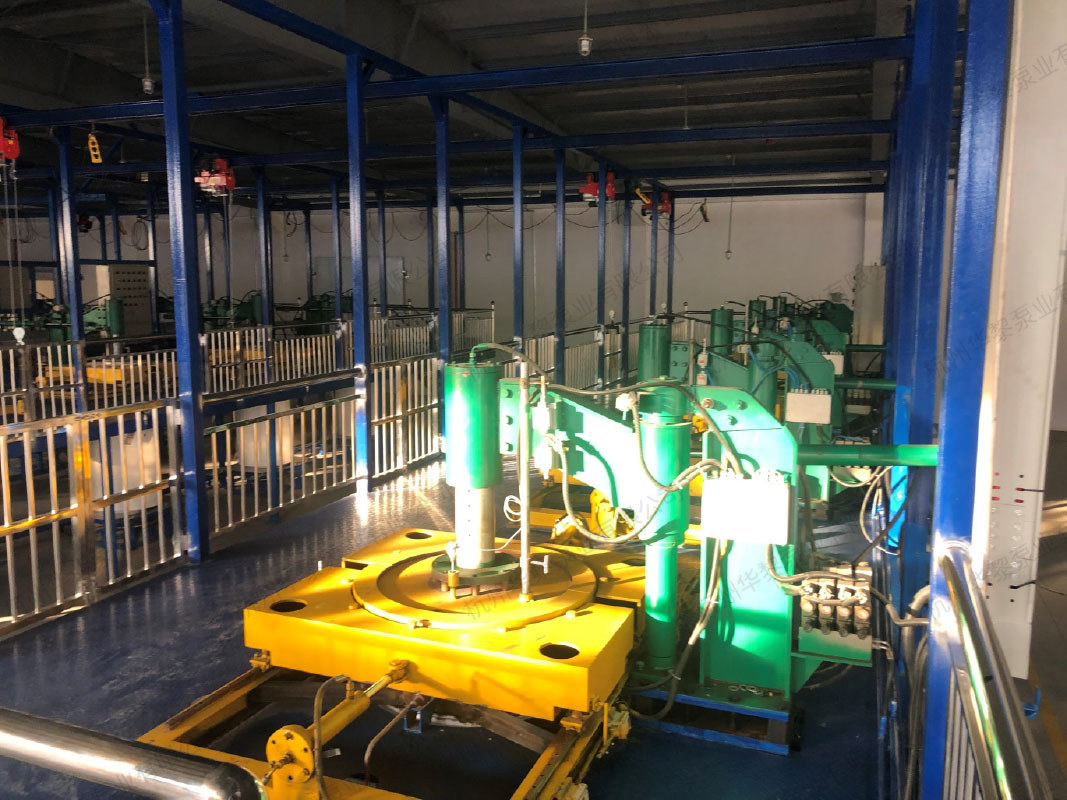

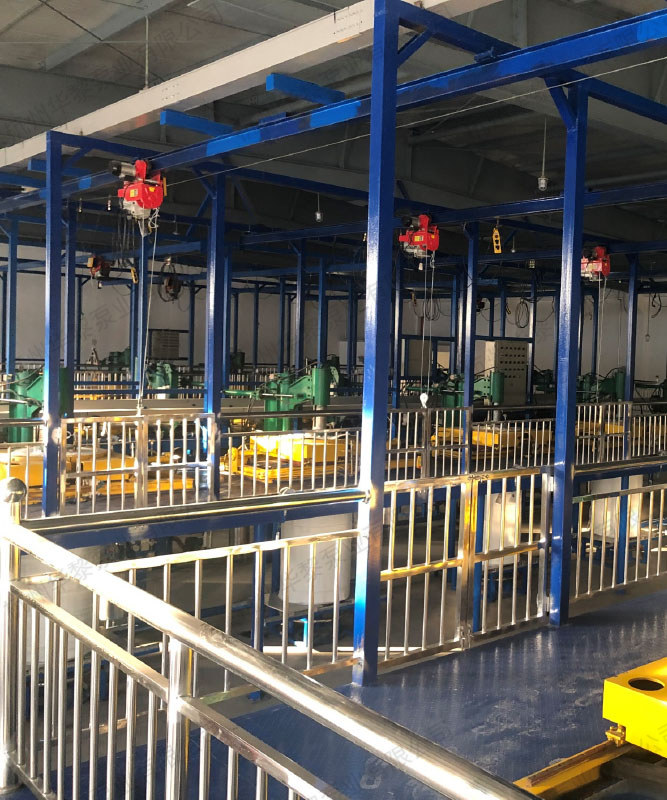

响水华厦乙醇气凝胶600升20个釜设备

2021-01-06 21:02:37 6749 华黎

  • 4.jpg
  • 3.jpg
  • 2.jpg

超临界流体萃取技术是目前世界上公认的一种高科技生物分离技术。具有低温、无毒、分离效率高等特点。萃取过程由萃取和分离组合而成。

At present, supercritical fluid extraction technology is known as a high-tech bioseparation technology, which is low temperature, innocuous, high separation efficiency. The extraction consists of extraction and separation.

超临界流体萃取区别于其他分离技术的优点

特别适合于热敏性及生物活性物质的分离。

SFE是最干净的提取方法,全过程不用有机溶剂,萃取物无残留溶媒,同时也防止了提取过程对人体的毒害和对环境的污染;

CO2无味、无臭、无毒,萃取过程中安全性好;且价格便宜,纯度高,容易取得,在生产过程中可循环使用,从而降低成本;

Advantages of supercritical fiuid extraction diferentiating it from other separation technologies

It is especially fit for the separation of thermosensitive and bioactive substances.

SFE, the cleanest extraction method, uses no organic solvent in the whole process, with no remnant menstruum in the extraction, thus it prevents human harm and environmental pollution.

CO2 is insipid, odorless and innocuous, very safe in the process of extraction; and it is cheap, pure, easy to obtain, and recyclable thus ithas reduced costs.

增加了第三分离釜:可加热,可冷却,增加了萃取分离的适合性。

所有加热、冷贮部件均有保温措施,节省能源,降低电耗。

CO2专用泵:填料具有耐高压,密封性能好,使用寿命长。可配用流量控制仪随意设定流量;数字显示使CO2流量一目了然。(该泵已获得国家专利。)

CO2氧化回收功能:属同国内创新,提高了CO2气体的利用效率。

制冷系统:室内外分离系统,消除了压缩机所产生的噪声及散发的热量;采用高效节能换热器,大大缩小了制冷系统的占地面积。

温度、压力、流量可采用计算机采集系统。可制作报表及显示运行情况(用户需求)。

The third separation kettle is added: it can heat, cool, and improve the aptness of extraction and separation.

All heating and cold storage parts are equipped with heat preservation device to save energy and reduce electricity consumption.

Special CO2 pump: its stuffing boasts high pressure tolerance, good airproof capacity, and long service life, which can control flux with flow quantity control instrument; digital display shows clearly the CO2flux.(This pump has gained national patent.)

CO2 oxidation and recycling: as domestic innovation, it enhances utilization efficiency of CO2.

Refrigeration system: indoor and outdoor separation system removes the noises and heat of compressor, while its high-efficient energy-saving heat exchanger greatly  reduces occupying area of refrigeration system.

Temperature,  pressure,  flow  quantity  can  adopt computeroperated acquisition system.  And according to customers' demands, the system  can produce  report forms and display operation condition.

我公司生产的超临界流体萃取设备具有如下八大特点:

萃取釜快开结构:放完气体即可打开萃取釜,密封材料不溶胀,可重复使用,节省了换料时间,提高了设备的利用率。(该结构已获国家专利)

干燥、净化器:可完成CO2气体的干燥、净化问题;可自动活化净化剂;设有捕捉剂入口,加入不同捕捉剂可以使少量未分离物质在捕捉剂的帮助下使之与CO2分离。

Our supercritical fluid extraction device has eight characteristics as follows

Fast-opening structure of extraction kettle: extraction kettle can be opened as soon as gas is given out; sealing material does not dissolve or swell and it can be used recyclable, which saves time and enhances utilization ratio of the equipment. (This structure has gained national patent)

Dryer and purifier: it can dry and purify CO2, activate purifying agent  automatically, and separate little non-separated substances from CO2 with the help of capture agent that comes in from the capture agent entrance.

基本型(Basic Model)

型 号 (Model) 规 格 (Specification) 组合形式 (Combination Form) 压力等级 (Pressure Class) 组合功能 (Combined Function) 备注 (Remarks)
HL-0.5L/32 "50Mpa 0.5升(L) - -萃二分,或一萃三分 One extractiontwo separations. or one extraction three separations 32、 40、50


可配精馏柱

Rectification columns are available



可根据用户
要求组合

It can be combined according to customers' requirement
HL-1L/3250Mpa 1升(L) -萃二分,或萃三分 One extraction two separations or one extraction three separations 32、 40、50
HL - 2L/32 50Mpa 2升(L) 一萃二分,或一萃三分 One extraction two separations, or one extraction three separations 32、 40、50
HL -3L/32 50Mpa 3升(L) -萃二分.或一萃三分 One extraction two separations, or one extraction three separations 32、 40、50
HL -5L/32 "50Mpa 5升(L) 一萃二分,或一萃三分 One extraction two separations or one extraction three separations 32、 40、50
HL -10L/32 ~50Mpa 10升(L) -萃二分,或一萃三分 One extraction two separations or one extraction three separations 32、 40、50
HL - 20L/32 "50Mpa 20升(L) 一萃二分,或一萃三分 One extraction two separations, or one extraction three separations 32、40、50
HL -25L/32 50Mpa 25升(L) -萃二分,或一萃三分 One extraction two separations, or one extractic n three separations 32、 40、50
HL -50L/32 "50Mpa 50升(L) 一萃二分,或一萃三分 One extraction two separations or one extraction three separations 32、40、50
HL -100L/32 50Mpa 100升(L) 一萃二分,或一萃三分 One extraction two separations, or one extraction three separations 32、 40、50
HL - 200L/32 50Mpa 100升(L) 一萃二分,或一萃三分 One extraction two separations, or one extraction three separations 32、40、50
HL-2x 10L/32^ 50Mpa 2x10升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、50
HL-2x 25L/32 40Mpa 2x25升(L) 二萃二分,或二萃三分 Two extractions two separations or two extractions three separations 32、40
HL-4x25L/32 40Mpa 4x25升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40
HL-2x 50L/32" 40Mpa 2x50升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-2 x 100L/32 40Mpa 2x100升+(L) 二萃二分,或二萃三分 O wo extractions twoseparations.s orwo exiractions three separa 32、 40
HL-2x200L/32~ 40Mpa 2x200升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-2x300L/32~ 40Mpa 2x300升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-2x400L/32~ 40Mpa 2x400升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-3x100L/32~ 40Mpa 3x100升(L) 三萃二分,或三萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-3x200L/32~ 40Mpa 3x200升(L) 三萃二分,或三萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-3x400L/32~ 40Mpa 3x400升(L) 三萃二分,或三萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-3x600L/32~ 40Mpa 3x600升(L) 三萃二分,或三萃三分 Two extractions two separations, or two extractions three separations 32、40
HL-3x800L/32~ 40Mpa 3x900升(L) 三萃二分,或三萃三分 Two extractions two separations, or two extractions three separations 32、40
注:我们是厂家,所有参数都可定制生产,欢迎来电咨询!  点击查看联系方式





复合机组型(Composite Unit Type)

型 号 (Model) 规 格 (Specification) 组合形式 (Combination Form) 压力等级 (Pressure Class) 组合功能 (Combined Function) 备注 (Remarks)
HL-(0.5+1)L/32^ 50Mpa 0.5+1升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、 50


萃取釜可单独使用;也可串、并联使用.
Extraction kettle can be used separately, or used in series and parallel connection



可配精馏柱;可根据用户要求组合
Rectification columns are available It can be combined according to customers requirement
HL-(1+2)L/32 50Mpa 1+2升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、 50
HL-(5+1)L/32 50Mpa 5+1升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、 50
HL-(5+2)L/32 50Mpa 5+2升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、 50
HL -(10+1)L/32 50Mpa 10+1升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、 50
HL-(10+2)L/32 50Mpa 10+2升(L) 二萃二分,或二萃三分 Two extractions two separations, or two extractions three separations 32、 40、 50
注:我们是厂家,所有参数都可定制生产,欢迎来电咨询!  点击查看联系方式





液态逆向连续型(Liquid countercurrent continuous type)

规 格 (Specification) 塔高 Tower height 压力等级(Mpa) (Pressure Class)
单塔(Single tower)3升(L) 4M


32、40、50Mpa
双塔(Double tower)2x3升(L) 4M
双塔(Double tower)2x20升(L) 4M
双塔(Double tower)2x50升(L) 6M
双塔(Double tower)2x100升(L) 6M
双塔(Double tower)2x150升(L) 9M



反应实验型(Reaction experiment type)

反应型式 (Reaction model) 反应参数 (Reaction parameter) 搅拌型式 (Agitator model) 控温精度(Temperature control precision)
管式(Tubular Type) 温度(Temperature):400~600’C,压力(Pressure):32、40、50Mpa。   士1'C
管式(Tubular Type) 温度(Temperature):400~600’C,压力(Pressure):32、40、50Mpa。
釜式(Kettle type) 容积(Cubage):0.2L、0.3L、0.4L、0.5L、1L、1.5L、2L 电磁驱动 (Electromagnetic actuation)
温度(Temperature):450~600"C,压力(Pressure):30、40、45Mpa。



纳米微粒制备型(Nanometer particles preparation type)

名称 (Name) 规格 (Specification) 加热方式 (Heating type) 备注 ( Remarks)
膨胀室容积 (Cubage of expansion chamber) 0.5L、1L、1.5L、2L 水浴或电加热
Water bath or electric heating
可视或不可视 Visible or invisible
喷嘴(Muzzle) 20u、40u、80u、100u   内混合或外混合 Internal mixing or external mixing



干燥装置(Drying equipment)

名称 (Name) 规 格 (Specification) 运行方式 (Operation mode) 控制方式 (Control mode) 加热方式 (Heating type) 备注 (Remarks)
干燥釜 (Drying tower) 0.5L、1L、1.5L、2L 循环或不循环 (Cycling or non-cycling) 手动或自动 (Manual or matic) 电加热方式 (Electric heating mode) 可根据用户要求 It can be combined according to customers' requirement



水氧化反应(Water oxidation)

名称 (Name) 规 格 (Specification) 温度等级'C (Temperature rating) 压力等级(Mpa)(Pressure Class) 材质 (Material)
反应器 (Reactor) 管式 (Tubular Type) ⚘3、⚘6、⚘9、⚘12、⚘16 400、450、500、550、600 25、30、35、40 英格尔或C276 Engle or C276
釜式 (Kettle type ) 0.2L、0.5L、1L、1.5L



测超临界状态下的溶解度(Measure critical solubility)

内  容
(Content)
备注
(Remarks)
规格(Specification) 40ml、60ml、80ml、100ml 循环或不循环 (Cycling or non-cycling)
耐压(Withstand voltage) 16Mpa



相平衡(Phase balance)

名称 (Name) 规 格 (Specification) 运行方式 (Operation mode) 温度等级C
(Temperature Class)
型式
(Model)
备注 (Remarks)
釜体 0.2、0.3、0.5、1、1.5 25、30、35、40、50 400、500、600 动态或静态 (Dynamic or static) 可变 (variable)



阀门(Valve)

名称 (Name) 规格(通径)
Specification(Drift diameter)
压力等级(Mpa)
(Pressure Class)
截止阀(Stop valve) ⚲3、⚲6、⚲8、⚲10、⚲14 32、40、50、60
微调阀(Micro-adjustmentvalve) ⚲2、⚲4、⚲6 32、40、50
背压阀(Bac pressure valve) ⚲2、⚲4 32、40、50
